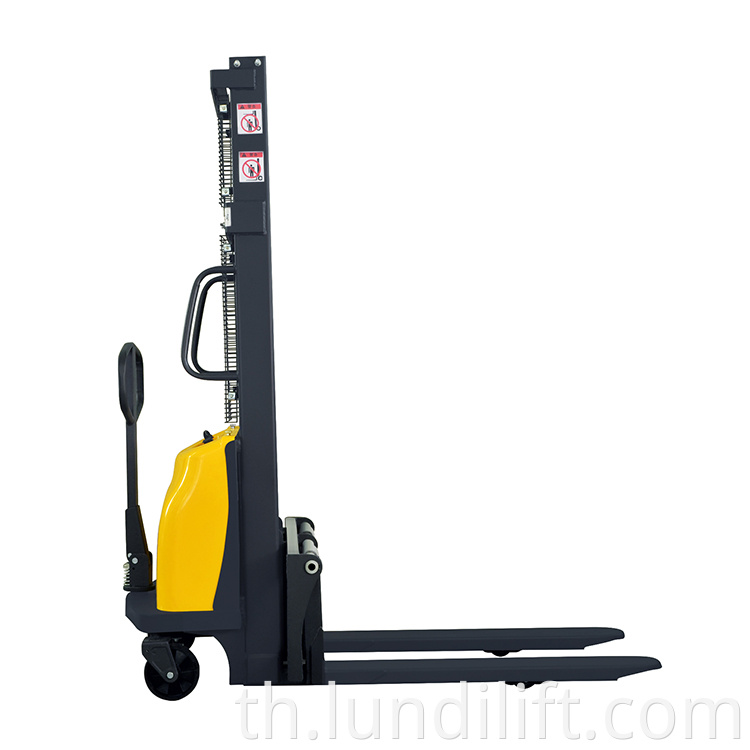

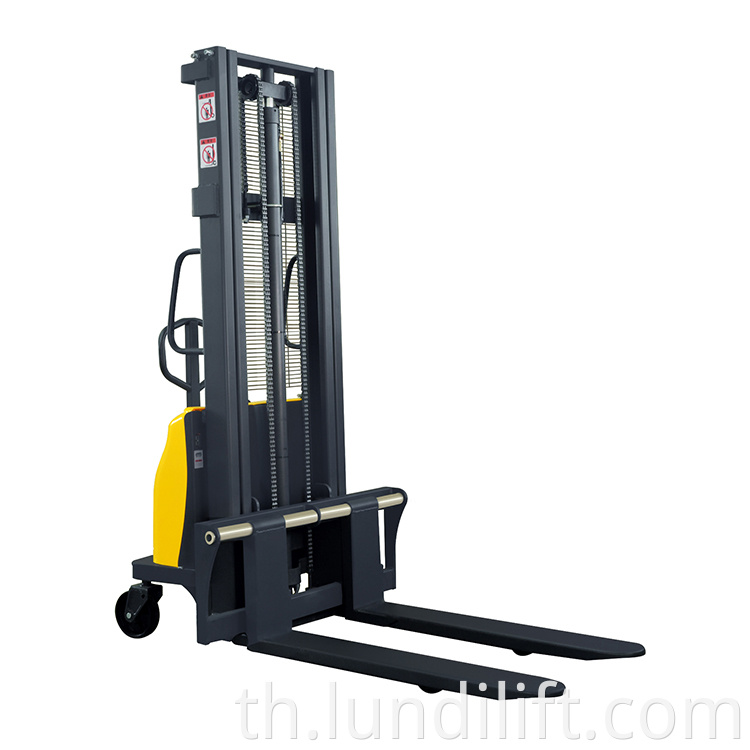

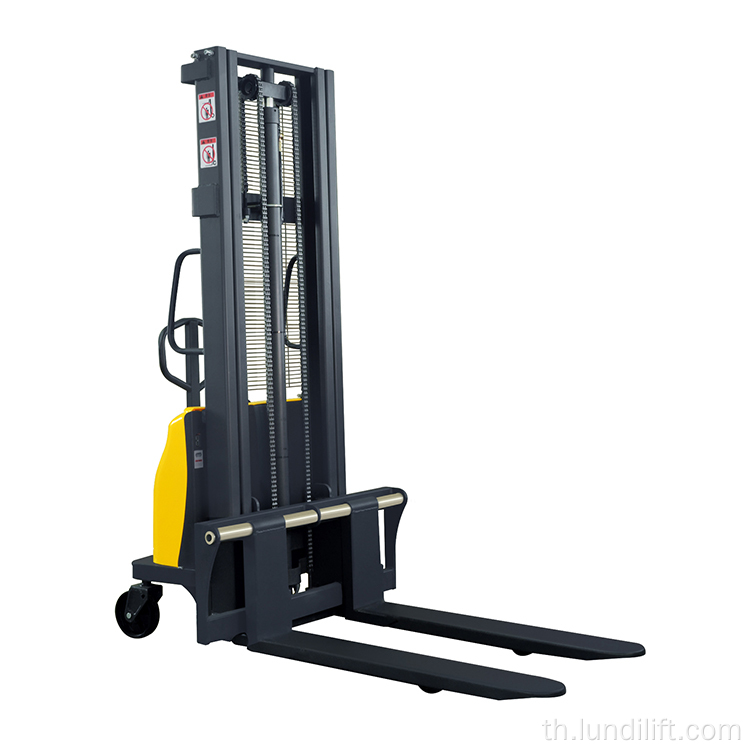

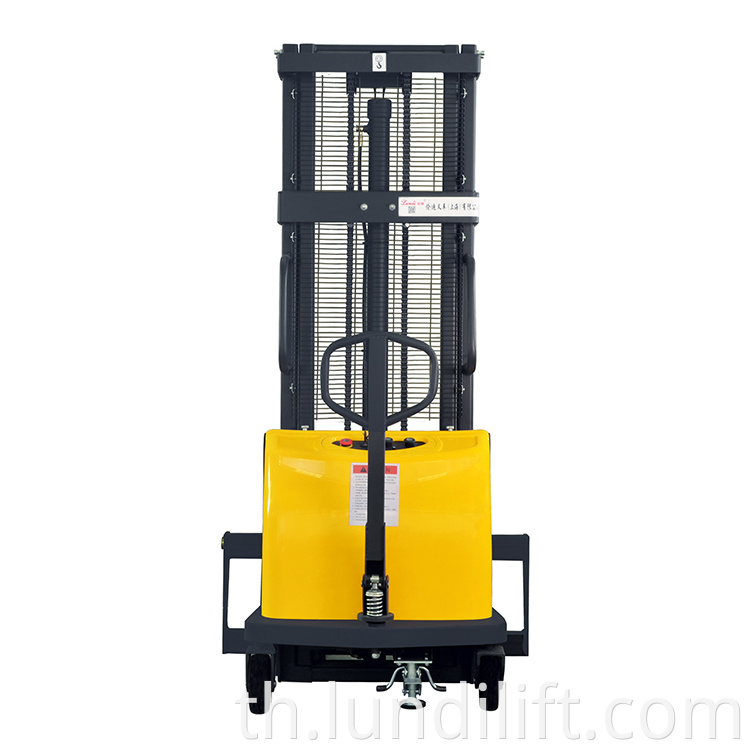

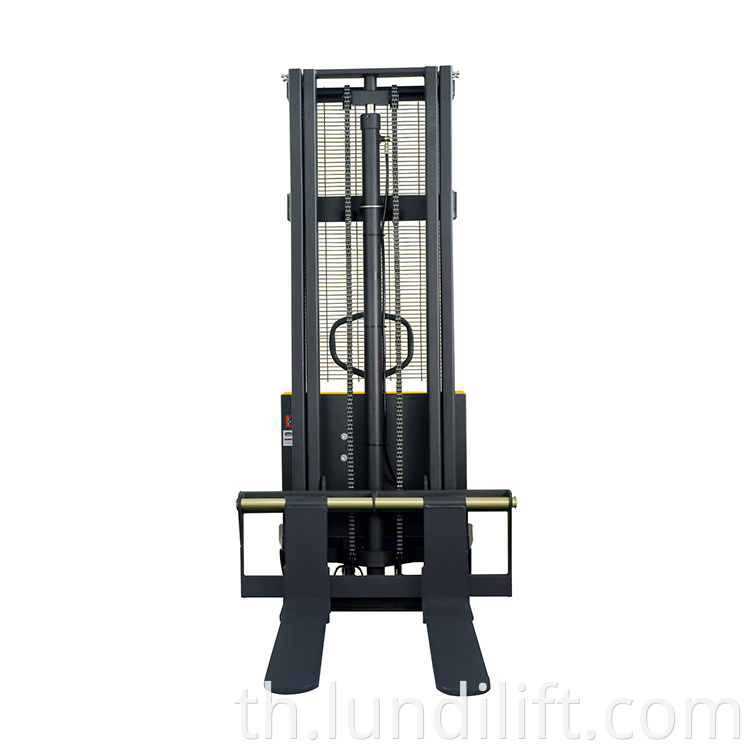

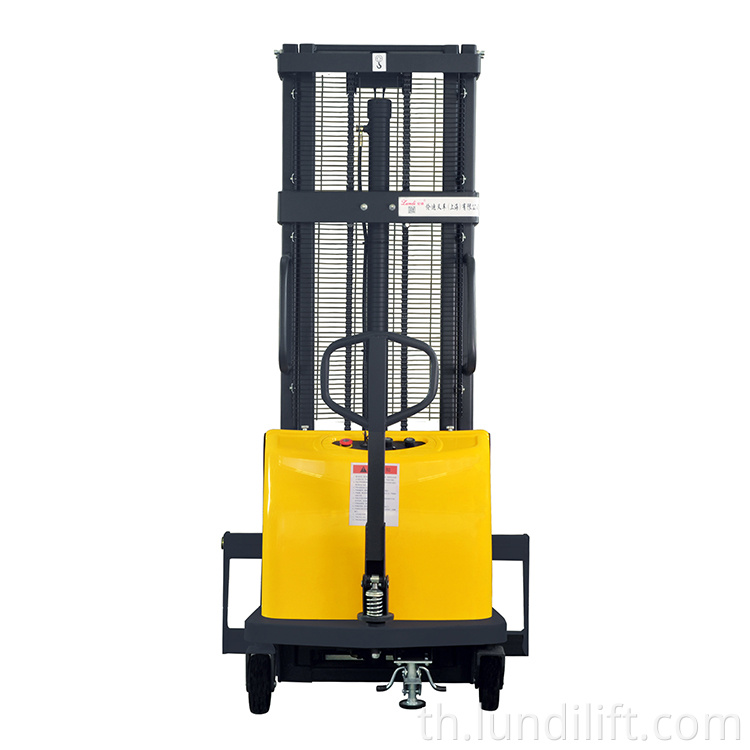

580 กก. 1.5 ตัน 4M สแต็คเดินกึ่งไฟฟ้าด้วย
$9891-4 Piece/Pieces
$9795-9 Piece/Pieces
$959≥10Piece/Pieces
ชนิดการชำระเงิน: | D/A,D/P,T/T,Western Union |
Incoterm: | FOB,EXW |
การเดินทาง: | Ocean,Land |
ท่าเรือ: | SHANGHAI,QINGDAO,TIANJING |
$9891-4 Piece/Pieces
$9795-9 Piece/Pieces
$959≥10Piece/Pieces
ชนิดการชำระเงิน: | D/A,D/P,T/T,Western Union |
Incoterm: | FOB,EXW |
การเดินทาง: | Ocean,Land |
ท่าเรือ: | SHANGHAI,QINGDAO,TIANJING |
แบรนด์: Lundi
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Brand Name: LunDI
Power Souce: Ac Motor
Min. Lifting Height: 90mm
Overall Dimensions: 50*160*1100 S/e/l (mm)
Warranty: 1 Year
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
ส่วนประกอบหลัก: ภาชนะรับความดัน, เครื่องยนต์, อื่น ๆ, การแบก, เกียร์, ปั๊ม, กระปุกเกียร์, เครื่องยนต์
Model: BDD15
Working Mode: Semi-Electric
Weight(with Battery): 580kg
Lift Height: 4000mm
Overall Length: 1860mm
Overall Width: 800mm
Drivering Control System: AC
ระยะเวลารับประกัน: 1 ปี
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
อุตสาหกรรมที่เกี่ยวข้อง: โรงแรม, ร้านเสื้อผ้า, ร้านค้าวัสดุก่อสร้าง, ร้านซ่อมเครื่องจักร, โรงงานผลิต, ฟาร์ม, ใช้ในบ้าน, ขายปลีก, บริษัท โฆษณา, พลังงานและการขุด, ร้านอาหารและเครื่องดื่ม
บริการที่ไม่อยู่ภายใต้การรับประกัน: การสนับสนุนทางเทคนิควิดีโอ
สถานะ: ใหม่
สถานที่กำเนิด: ประเทศจีน
แหล่งจ่ายไฟ: มอเตอร์ AC
รายงานการทดสอบทางกล: ให้
การตรวจสอบโรงงานวิดีโอ: ให้
ประเภทการตลาด: สินค้าธรรมดา
ระยะเวลาการรับประกันส่วนประกอบหลัก: 1 ปี
Place Of Origin: Jiangsu, China
Fork Length: 1100 mm
Fork Width: 320-1030 mm
Fork Width: 320-1030mm
Certification: CE, CE
หน่วยงาน ที่ขาย | : | Piece/Pieces |
ชนิดของแพคเกจ | : | ฟิล์มห่อ, ส่งออกพาเลทมาตรฐานหรือเคสไม้ สามารถพูดคุยเกี่ยวกับวิธีบรรจุภัณฑ์เฉพาะได้ |
ตัวอย่างรูปภาพ | : |
Model |
|
BDD15 |
Working mode |
|
Electric |
Driving mode |
|
Walkie |
Rated load |
Q (kg) |
1500 |
Load centre distance |
c (mm) |
500 |
Front suspension |
x (mm) |
745 |
Wheel spacing |
Y (mm) |
1200 |
Weight (with battery) |
kg |
580 |
Wheels |
|
nylon |
Wheel size, front wheel |
|
Φ180*50 |
Wheel size, rear wheel |
|
Φ80×70 |
Wheel, front and rear number (x = drive wheel) |
|
2/2 |
Front wheel |
b10(mm) |
690 |
Rear wheel |
b11(mm) |
410/525 |
Lift height |
h1(mm) |
4000 |
Height of door frame retracted |
h3(mm) |
2590 |
Maximum height of gantry during operation |
h4(mm) |
4500 |
Lower height |
h13(mm) |
90 |
Overall length |
l1(mm) |
1860 |
Length of fork |
l2(mm) |
1100 |
Overall width |
b1(mm) |
800 |
Fork size |
S/e/l (mm) |
50×160×1100 |
Fork width |
b5(mm) |
320-1030 |
Distance center off clearance |
m2(mm) |
40 |
Channel width, tray 1000 x1200(1200 cross fork placement) |
Ast(mm) |
2305 |
Channel width, pallet 800 x1200(1200 placed along fork) |
Ast(mm) |
2258 |
Turning radius |
Wa(mm) |
1425 |
Speed up, full load/ no load |
m/s |
0.08/0.1 |
Drop speed, full load/ no load |
m/s |
0.15/0.12 |
Driving brake |
|
Mechanical braking |
Lift motor power |
kW |
2.2 |
Battery voltage/ rated capacity |
V/Ah |
12/120 |
Battery weight |
Kg |
43 |
Driver's Ear Noise Level DIN12053 |
dB (A) |
≤70 |
Q1: คุณเป็นโรงงานหรือไม่?
A1: แน่นอน Jiangsu Lundi Forklift Co.ltd.was ก่อตั้งขึ้นในปี 2559 แต่มีประสบการณ์การวิจัยและพัฒนาทีมPrivacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
