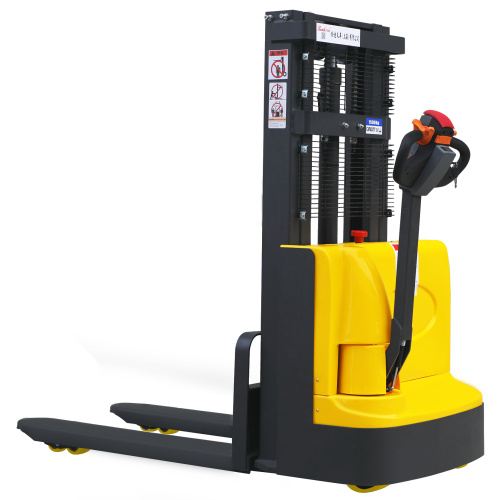

1.5t/2m Warehouse Fork Fork Forklift Machine Electric
$15881-2 Piece/Pieces
$15483-5 Piece/Pieces
$1499≥6Piece/Pieces
ชนิดการชำระเงิน: | D/A,D/P,T/T,Western Union |
Incoterm: | FOB |
การเดินทาง: | Ocean,Land |
ท่าเรือ: | TIANJING,QINGDAO,SHANGHAI |
$15881-2 Piece/Pieces
$15483-5 Piece/Pieces
$1499≥6Piece/Pieces
ชนิดการชำระเงิน: | D/A,D/P,T/T,Western Union |
Incoterm: | FOB |
การเดินทาง: | Ocean,Land |
ท่าเรือ: | TIANJING,QINGDAO,SHANGHAI |
แบรนด์: Lundi
อุตสาหกรรมที่เกี่ยวข้อง: โรงแรม, ร้านเสื้อผ้า, ร้านค้าวัสดุก่อสร้าง, ร้านซ่อมเครื่องจักร, โรงงานผลิต, ฟาร์ม, ใช้ในบ้าน, ขายปลีก, บริษัท โฆษณา, พลังงานและการขุด, ร้านอาหารและเครื่องดื่ม
บริการที่ไม่อยู่ภายใต้การรับประกัน: การสนับสนุนทางเทคนิควิดีโอ
สถานะ: ใหม่
สถานที่กำเนิด: ประเทศจีน
แหล่งจ่ายไฟ: มอเตอร์ AC
ระยะเวลารับประกัน: 1 ปี
รายงานการทดสอบทางกล: ให้
การตรวจสอบโรงงานวิดีโอ: ให้
ประเภทการตลาด: สินค้าธรรมดา
ระยะเวลาการรับประกันส่วนประกอบหลัก: 1 ปี
ส่วนประกอบหลัก: เครื่องยนต์, ภาชนะรับความดัน, อื่น ๆ, การแบก, เกียร์, ปั๊ม, กระปุกเกียร์, เครื่องยนต์
Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, other
Showroom Location: None
Condition: New
Brand Name: LunDI
Power Souce: MOTOR
Warranty: 1 Year
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: Other
Drive Way: Electric
Driving Style: Walking
Load Center Distance: 500c(mm)
Wheels: Polyurethane wheel
Front Wheel Track: 886b10(mm)
Rear Wheel Track: 525b11(mm)
Height When Lowered: 90h13(mm)
Overall Length: 1760l1(mm)
Body Width: 800b1(mm)
Outer Width Of Fork: 690b5(mm)
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Place Of Origin: Jiangsu, China
หน่วยงาน ที่ขาย | : | Piece/Pieces |
ชนิดของแพคเกจ | : | ฟิล์มห่อ, ส่งออกพาเลทมาตรฐานหรือเคสไม้ สามารถพูดคุยเกี่ยวกับวิธีบรรจุภัณฑ์ที่เฉพาะเจาะจงได้ |
ตัวอย่างรูปภาพ | : |
สแต็คไฟฟ้าเต็มรูปแบบ (ประเภทวิทยุ)
สแต็คไฟฟ้า
การออกแบบที่ปลอดภัยและมีประสิทธิภาพ
model
|
|
CDD-A10/15
|
Drive way
|
|
Electric (battery)
|
Driving style
|
|
Walking
|
Rated load
|
Q(kg)
|
1000/1500
|
Load center distance
|
c(mm)
|
500
|
Weight (with battery)
|
kg
|
418/470/484/503/526
|
Wheels
|
|
Polyurethane wheel
|
Wheel size, front wheel
|
|
φ210×70
|
Wheel size, rear wheel
|
|
φ80×70
|
Additional wheel (size)
|
|
φ100×50
|
Wheels, number of front and rear (x = driving wheels)
|
|
1x+2/4
|
Front wheel track
|
b10(mm)
|
886
|
Rear wheel track
|
b11(mm)
|
525
|
Lifting height
|
h14(mm)
|
1600/2000/2500/3000/3500
|
Height when the mast is retracted
|
h15(mm)
|
2090/1590/1840/2090/2340
|
Height when lowered
|
h13(mm)
|
90
|
Overall length
|
l1(mm)
|
1760
|
Height of mast during operation
|
l2(mm)
|
2090/2550/3050/3550/4050
|
Body width
|
b1(mm)
|
800
|
Fork size
|
S/e/l(mm)
|
60/170/1100
|
Outer width of fork
|
b5(mm)
|
690
|
Ground clearance of wheelbase center
|
m2(mm)
|
40
|
Aisle width, pallet 1000x1200 (1200 placed across forks)
|
Ast(mm)
|
2200
|
Aisle width, pallet 800x1200 (1200 placed along the fork)
|
Ast(mm)
|
2100
|
Turning radius
|
Wa(mm)
|
1370
|
Driving speed, fully loaded/unloaded
|
Km/h
|
4/5.6
|
Lifting speed, fully loaded/unloaded
|
m/s
|
140
|
Lowering speed, full load/no load
|
m/s
|
101
|
Gradeability, loading/unloading
|
%
|
March 7
|
Service brake
|
|
Electromagnetic brake
|
Drive motor power
|
kW
|
0.75
|
Increase motor power
|
kW
|
2.2
|
Battery voltage/rated capacity
|
V/Ah
|
24V/80AH
|
Battery weight
|
Kg
|
26*2
|
Battery size (length X width X height)
|
mm
|
260*170*210
|
The noise level at the driver's ear complies with DIN12053
|
dB(A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
